@ TR-8KS TR-4KM TR-6KM TR-10KM TR-15K TR-20K
Max. Input Energy mJ (ƒĘF/Vdc) 2.1 (0.047/300) 1.47 (0.047/250) 1.47 (0.047/250) 4.5 (0.1/300) 6.1 (0.1/350) 20 (0.2/450)
Normal Input Energy mJ (ƒĘF/Vdc) 1.47 (0.047/250) 0.9 (0.047/200) 0.9 (0.047/200) 3.1 (0.1/250) 4.5 (0.1/300) 16 (0.2/400)
Peak Output Voltage of First Pulse at Normal Energy (KVP) -8 -4 -6 -10 -15 -20
First Output Pulse Width (ƒĘs) 1.0 0.7 0.8 1.4 3.0 4.6
Dimesions A mm 7.5 14ƒÓ 18ƒÓ 19ƒÓ 20ƒÓ 20ƒÓ
Dimesions B mm 8.5 15 15 15 35 35

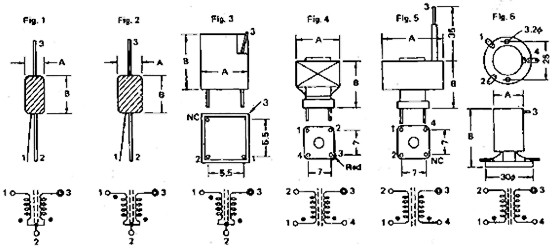

Fig. No. 3 4 4 5 6 6



@
